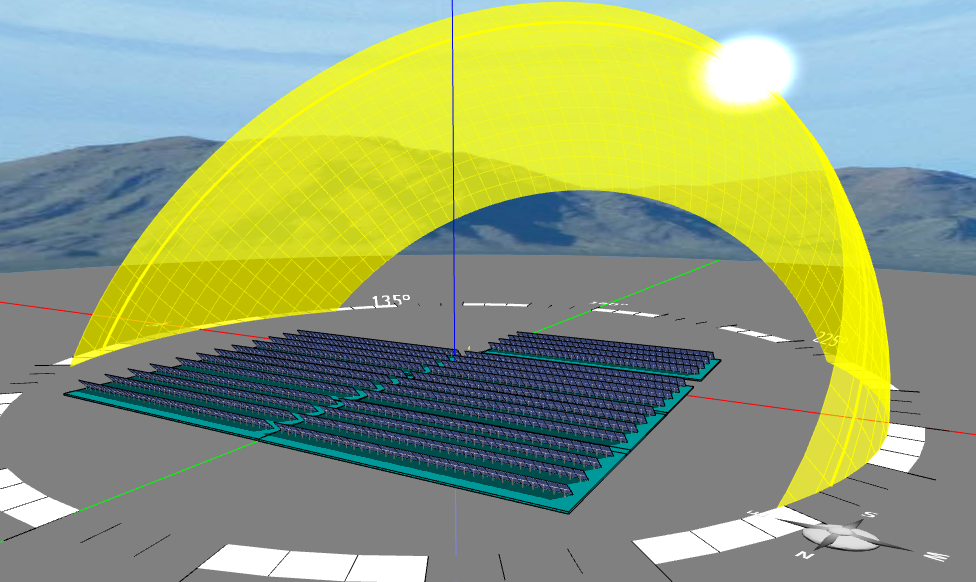

|Modeling 1,000 PV panels in a desert|
|Solar radiation simulation|
We have just added new modeling capacities to our Energy3D
software for simulating photovoltaic (PV) power stations
. With these additions, the latest version of the software can now simulate rooftop solar panels, solar parks, and solar power plants. Our plan is to develop Energy3D into a "one stop shop" for solar simulations. The goal is to provide students an accessible (yet powerful) tool to learn science and engineering in the context of renewable energy and professionals an easy-to-use (yet accurate) tool to design, predict, and optimize renewable energy generation.
Users can easily copy and paste solar panels to create an array and then duplicate arrays to create more arrays. In this way, users can rapidly add many solar panels. Each solar panel can be rotated around three different axes (normal, zenith, and azimuth). With this flexibility, users can create a PV array in any direction and orientation. At any time, they can adjust the direction and orientation of any or all solar panels.
|PV arrays that are oriented differently|
What is in the design of a solar power plant? While the orientation is a no-brainer, the layout may need some thinking and planning, especially for a site that has a limited area. Another factor that affects the layout is the design of the solar tracking system
used to maximize the output. Also, considering that many utility companies offer peak and off-peak prices for electricity, users may explore strategies of orienting some PV arrays towards the west or southwest for the solar power plant to produce more energy in the afternoon when the demand is high in the summer, especially in the south.
|Rooftop PV arrays|
In addition to designing PV arrays on the ground, users can do the same thing for flat rooftops as well. Unlike solar panels on pitched roofs of residential buildings, those on flat roofs of large buildings are usually tilted.
We are currently implementing solar trackers
so that users can design solar power plants that maximize their outputs based on tracking the sun. Meanwhile, mirror reflector arrays will be added to support the design of concentrated solar power
plants. These features should be available soon. Stay tuned!
